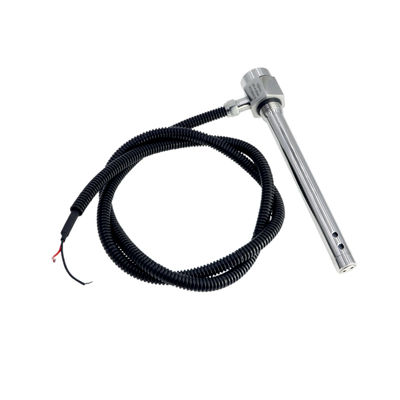

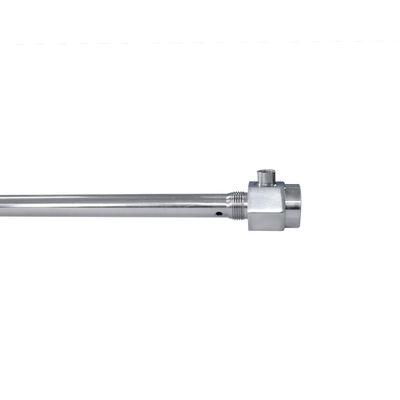

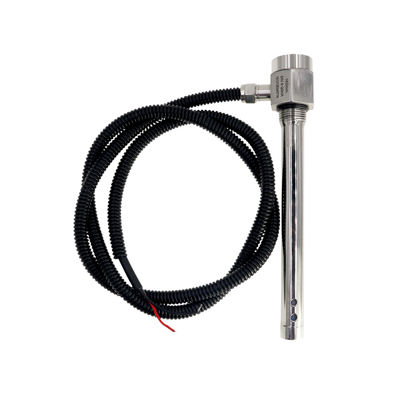

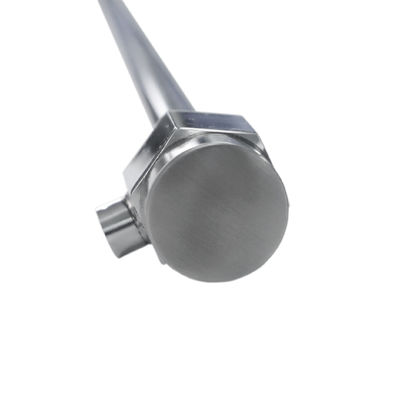

Anti Corrosive DC5V SS304 RS485 Capacitive Fuel Level Sensor For Chemistry
| Place of Origin | China |
|---|---|
| Brand Name | Sier |
| Certification | CE,RoHS |
| Model Number | SPT61 |
| Minimum Order Quantity | 1 |
| Price | USD40~80/Piece |
| Packaging Details | Carton |
| Delivery Time | 7 |
| Payment Terms | T/T, Western Union |
| Supply Ability | 5000 pieces each month |
Product Details
| Housing | SS304 | Pressure Port | SS304 |
|---|---|---|---|
| Probe | SS304 | Sealing Gasket | NBR/Viton |
| Cable | PE | Cable Protection Probe | PE |
| High Light | SS RS485 submersible hydrostatic level transmitter,RoHS SS304 submersible pressure transducer,RoHS RS485 submersible water level sensor |
||
Product Description
Capacitive Fuel Sensor
Features
Reliable performance, easy application
All Stainless-Steel construction
Short protection and reverse polarity protection
4/20mA, 0/5V, 0/3.3V, RS485, RS232 optional
Customize design available
Introduction
SPT61 is capacitive fuel sensor for general fuel measurement purpose. It uses full stainless-steel construction and high resolution capacitive measurement system, make sure the measurement result is stable even when on the moving vehicle. It is widely used on heavy duty trucks, fuel distribution station, diesel generator, and other site which need to measure the fuel level constantly. It also provides GPS system for customer to monitoring abnormal fuel consumption.
Specification
| Measure range | 100~1400mm |
| Pressure range | -1~4bar |
| Working temperature | -35~+70℃ |
| Probe size | φ16mm |
| Power supply | DC5V, 9~36V |
| Working current | ＜10mA |
| Mounting option | G1/2 thread, Flange mounting(customized connection available) |
| Output signal | 4~20mA, 0~3.3V, 0~5V, RS485, RS232, CAN. |
| Explosion proof | EXd II CT5 |
| Accuracy | ±0.5% |
| Electrical Connection | Wires or customized plug |
Construction and Outline Dimension
Construction material:
| Housing | SS304 |
| Pressure port | SS304 |
| Probe | SS304 |
| Sealing gasket | NBR/Viton |
| Cable | PE |
| Cable protection probe | PE |
